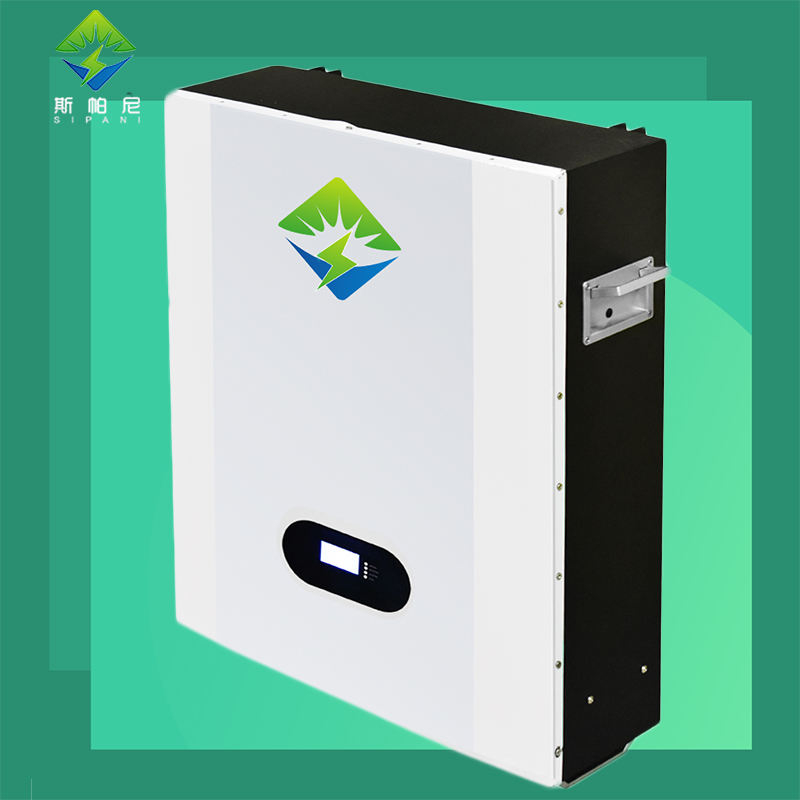

SIPANI Home Power Wall Battery Lifepo4 Lithium Battery 48v 200ah 51.2v 10.24kwh 10 year warranty

Voltage:
Capacity:
Availability:
Quantity:
  • SIPANI

All Product Models:
 ♦ Customized service : logo/size/color/etc.
 ♦ Custom Function: WIFI , Blue tooth , Communication Protocol etc.
Wall Mounted Lifepo4 battery
Model Nominal Voltage Nominal Capacity Energy Size
(Customized)
CD-25.6V 200AH 25.6V 200AH 5120WH 475*505*156mm
CD-25.6V 250AH 25.6V 250AH 6400WH 475*655*156mm
CD-48V 100AH 48V 100AH 4800WH 605*405*200mm
CD-48V 150AH 48V 150AH 7200WH 610*440*175mm
CD-48V 200AH 48V 200AH 9600WH 620*520*256mm
CD-48V 250AH 48V 250AH 12000WH 620*670*256mm
CD-48V 300AH 48V 300AH 14400WH 780*520*210mm
CD-51.2V 100AH 51.2V 100AH 5120WH 605*405*200mm
CD-51.2V 150AH 51.2V 150AH 7680WH 610*440*175mm
CD-51.2V 200AH 51.2V 200AH 10240WH 620*520*256mm
CD-51.2V 250AH 51.2V 250AH 12800WH 620*670*256mm
CD-51.2V 300AH 51.2V 300AH 15360WH 780*520*210mm

Power Wall 10kwh powerwall backup powerwall home

Capacity 12V200Ah 24V100Ah 24V200Ah 48V50Ah 48V100Ah 48V150Ah 48V200Ah
Function Over-discharge, Overcharge, Shortcircuit Protection & Equalization Function
Nominal Volt 12.8V 25.6V 48V/51.2V
Nominal   Capacity 2.56kwh 2.56kwh 5.12kwh 2.4kwh/2.56kwh 4.8kwh/5.12kwh 7.2kwh/7.68kwh 9.6kwh/10.24kwh
Recommend   Cutoff volt 10.8V 21.6V 40.5V/43.2V
Recommend   Charging volt 14.4V 28.8V 54V/57.6V
Max. Constant Charging  Current 50A/100A/150A/200A etc. Customized to your needs
Max.   Discharging   Current
Working   Temperature -10℃~55℃ (Recommend10℃~40℃)
Storage   Temperature -20℃~45℃ (Recommend10℃~35℃)
Allowable Humidity range 0~85% RH
Cycle Life 6000 Cycles(@50%DOD)
Communication RS485/CAN etc.
All can Customized to your needs
Net Weight
Dimension
