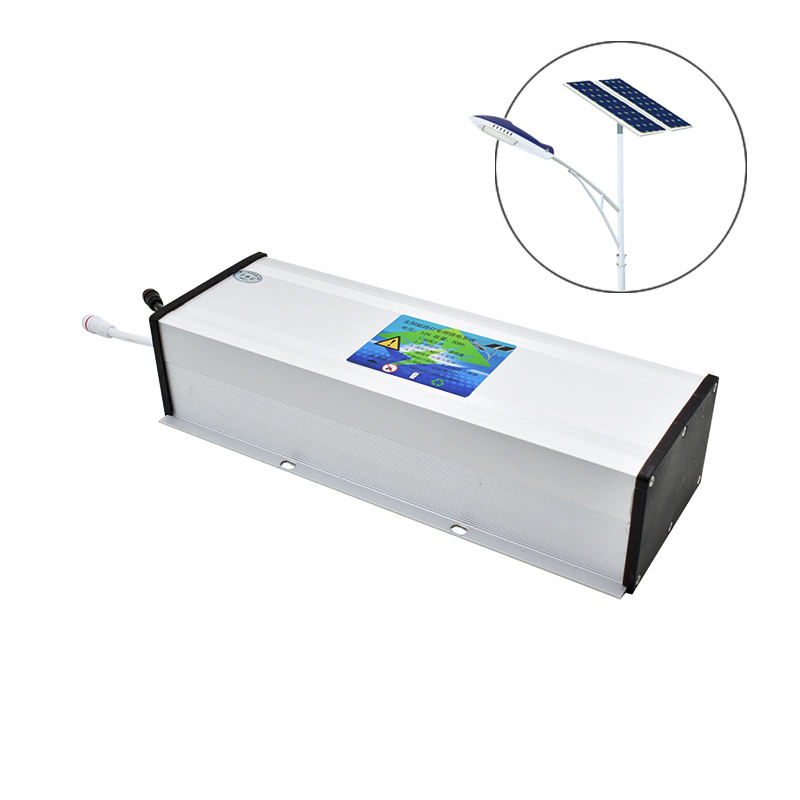

OEM 12V 24V 36V 48V LFP Battery Rechargeable 30/40/50/60/100ah Li-Ion Storage 12v Lifepo4 Battery Pack

Parameter of 12V Split-type solar street light battery pack(LFP battery)
Battery pack Battery specification 12.8V12AH~30AH 12.8V42AH~60AH 12.8V72AH~90AH 12.8V102AH
Cell type 32700 LiFePO4 lithium-ion battery cell
Cell capacity 6000mAh
Internal resistance ≤10mΩ
Norminal voltage 12.8V
Norminal capacity 12AH 24AH 30AH 42AH 54AH 60AH 72AH 84AH 90AH 102AH
Cell layout 4S2P 4S4P 4S5P 4S7P 4S9P 4S10P 4S12P 4S14P 4S15P 4S17P
BMS current 15A
Cycle life 2000 cycles
Depth of discharge ≥95%
Charge cut-off votltage 14.4V
Discharge cut-off votltage 10V
Solar input Advised PV input power 20~40W 40~60W 60~80W 80~100W 100~130W 120~160W 140~200W 160~240W 180~230W 200~250W
PV input voltage 18V
Controller Charge method PWM
Discharge method Flat/rise voltage, continuous current
Charge current 15A(MAX)
Discharge current 3.3A(MAX)
load(LED-1W) 12V:5~18 series
Output voltage 12V:15~55V
Dimming value 10%~90%
Working mode Programmable, works 8 hrs per night, 3hrs*80%+3hrs*40%+2hrs*20%(load power)
Load Advised load power 10W 10W 20W 20W 30W 30W 40W 40W 50W 60W
Voltage platform 12V
Advised pole height 3m 3m 4m 4m 6m 6m 8m 8m 10m 12m
Continuous working days 2 days
Other info Working temperature -10℃~+60℃
Storage  temperature 0℃~+45℃
Warranty 2 years
IP level IP65
Weight(Approx) 1.9kg 3.1kg 3.7kg 4.8kg 5.9kg 6.5kg 8.1kg 9.2kg 9.9kg 11.5kg
Shell size Plastic & Aluminum;Consult our sales rep for specific dimension
Input terminal 2pin, 2*1.5mm2, 15cm long, male connector
Output terminal 4pin, 4*0.75mm2, 15cm long, male connector
Accessory PV cable 2pin, 2*1.5mm2, 50cm long, female connector
Load cable 4pin, 4*0.75mm2, 250cm long, male connector


integrated street lamp battery suppliers solar led street lamp battery manufacturers street lamp lithium cylindrical battery all in one solar street light lithium battery batteries for solar street lights batteries.for.solar.street lights battery for solar street light Lithium Ion Solar Battery Pack Lifepo4 Battery 12v30ah 40ah 50ah 12v30ah Lifepo4 Battery For Solar Street Lights

integrated street lamp battery suppliers
Packaging & Shipping

solar led street lamp battery manufacturers


1.What products do you make?
We provide lithium ion battery for street light, customized lithium battery pack for the most electrics appliances, solar storage battery, electric bicycle battery, and portable power station.

2.Do you provide OEM service?
YES. The required quantity is 200 pcs and above.
3.How long does it take for sampling?
It takes 2-3 days for small battery pack(with capacity below 50AH), and 4~7days for big battery pack(with capacity above 50AH).
4.How long is your lead time?
The lead time is 5~7 days for orders with quantity below 50 pcs, 8~15 days for 50-300 pcs, and 10~20 days for 500 pcs and above.
5.How do you ship the goods?
We generally ship the sample via DHL, UPS, EMS, Fedex, TNT, and normal orders by sea or by air, depends on the quantity of the order. If you need us to arrange shipping for you, we will approach the best method to lower your cost.
6.How do you guarantee the quality?
Our production is proceeding with the guideline of ISO9001 quality management system and we have a strict QC procedure for picking out unqualified products, which is battery capacity classifying, aging, sampling inspection, general testing, discharge testing and appearance checking, with all the procedure gone over, we can control the faulty rate below 0.003%.
7.How long is your warranty?
3 years for solar street light battery, battery pack and solar storage battery, 1 year for portable power station. Besides, all of our products have been insured by CPIC, so please rest assured of the safety performance.
8.For solar street light battery, what should I know about rainy or cloudy days?
The battery for solar street light is hardly being charged during rainy or cloudy days, so it should be customized to be capable for working in the worst weather condition locally, so please let us know how long are the continuous rainy or cloudy days that your could estimate.
