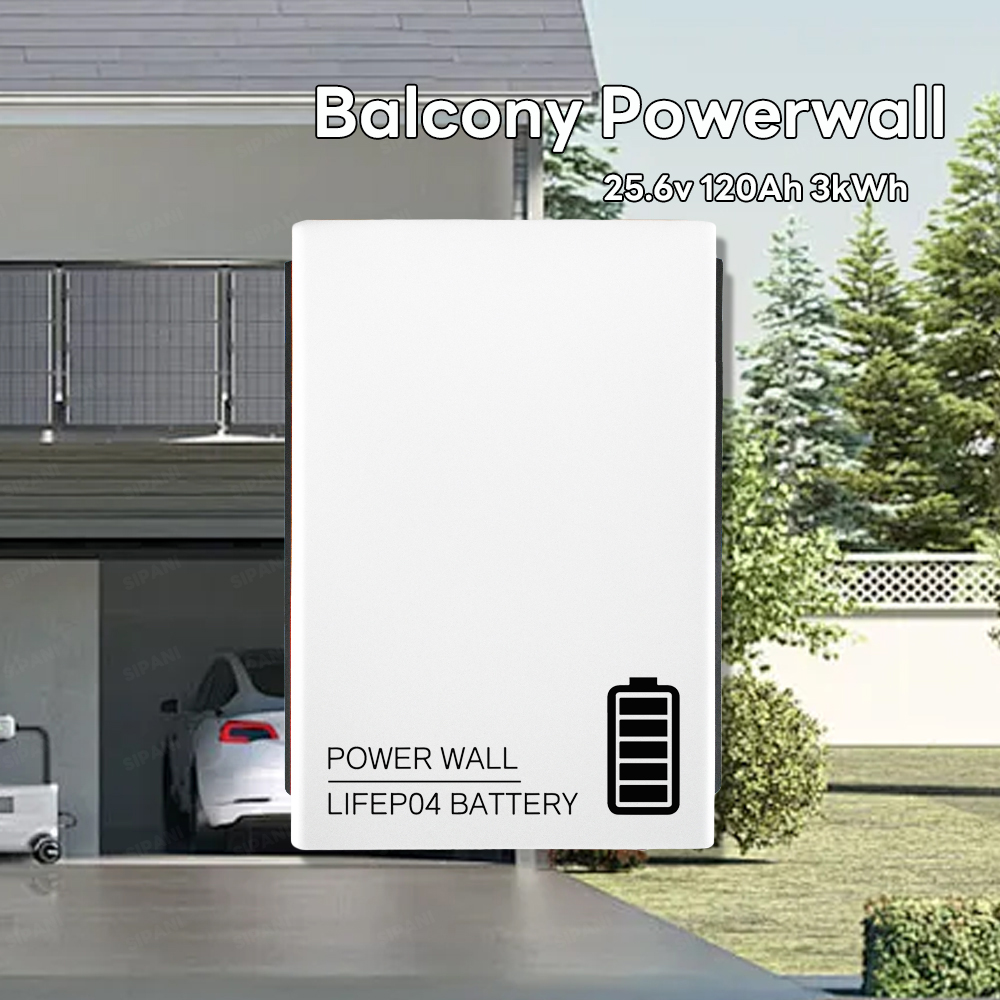

EU Mini Balcony Solar Panel System Micro 3kwh Powerwall Battery Home Complete Energy Storage System Micro Inverter Balcony PV 24V 120Ah Wall Mounted Lifepo4 Battery

Share to:

EU Mini Balcony Solar Panel System Micro 3kwh Powerwall Battery Home Complete Energy Storage System Micro Inverter Balcony PV 24V 130Ah Wall Mounted Lifepo4 Battery

Sipani Solar Micro Inverter Battery System Home MIINI ESS Balcony Pv Panels Micro Inverter With Battery Power Wall

Voltage:	24V Other
Capacity:	100AH 130AH 150AH 200Ah
Availability:

Quantity:



Inquire Add to Basket

Model:
CD-WMB24120
Brand:
SIPANI

Product Description

We Have A Professional Solar Energy Storage System Team To Customize The Solar Energy Storage System You Need!

Cover Energy Storage Battery, Popular Brand Inverters, Monocrystalline Silicon Solar Panels.

JUST CHAT NOW

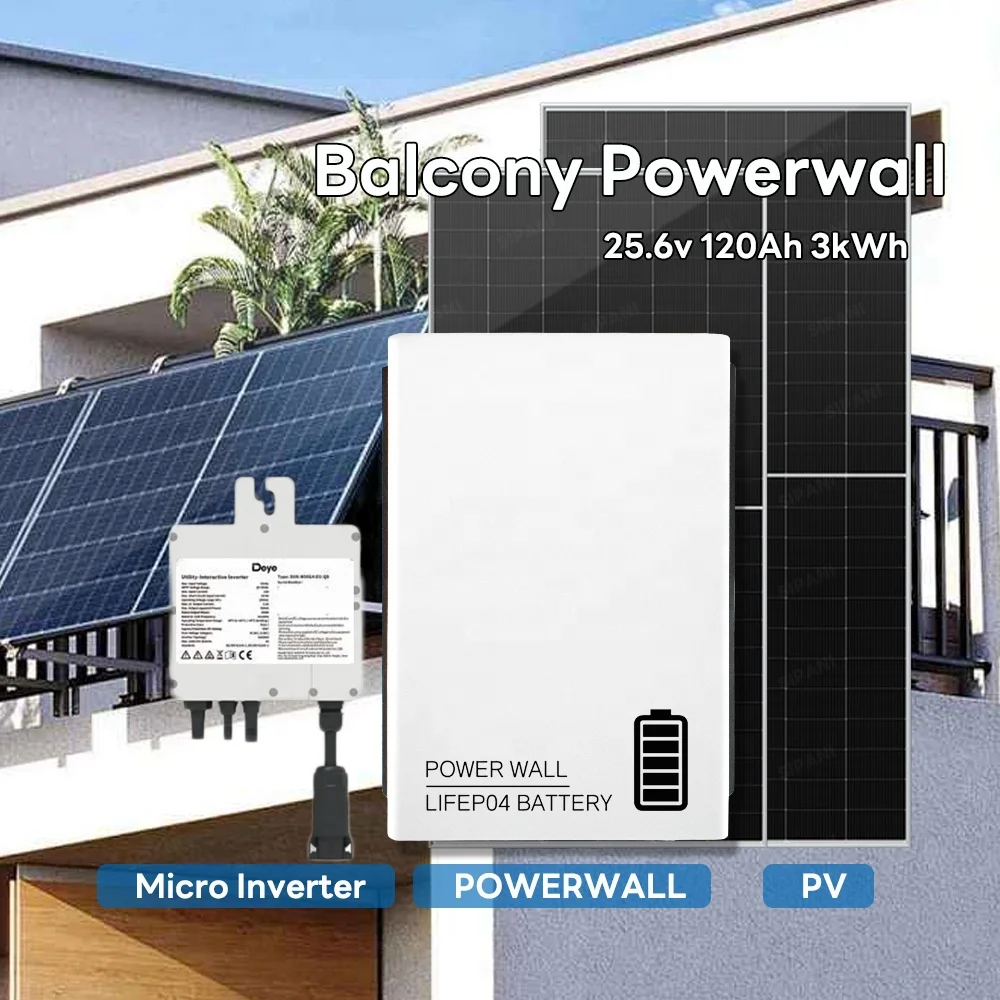

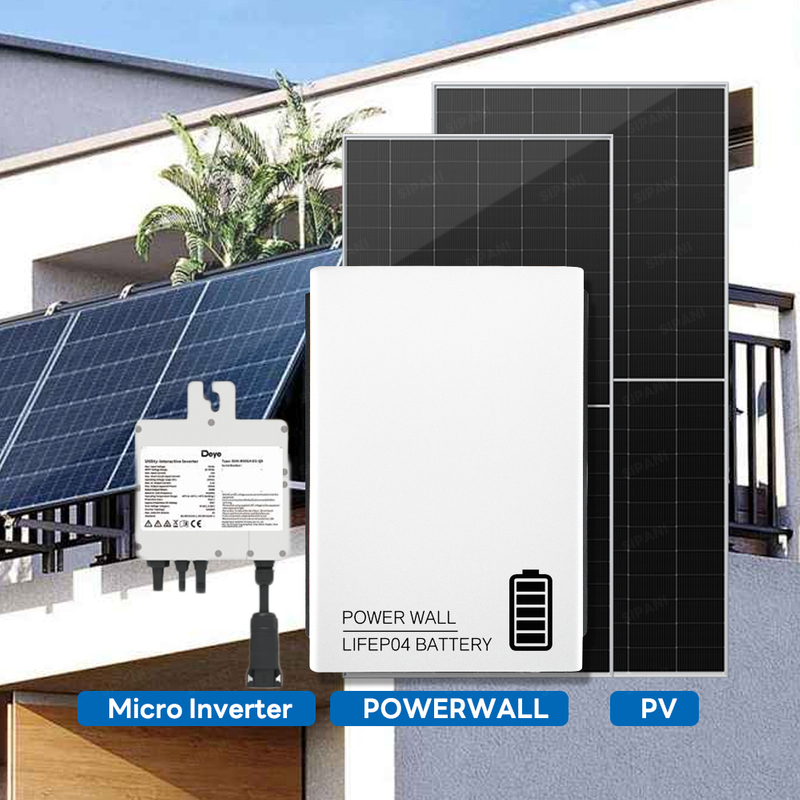

balcony solar system

balcony battery storage powerwall balcony

All Product Models: &diams; Customized service : logo/size/color/etc. &diams; Custom Function: WIFI , Blue tooth , Communication Protocol etc.

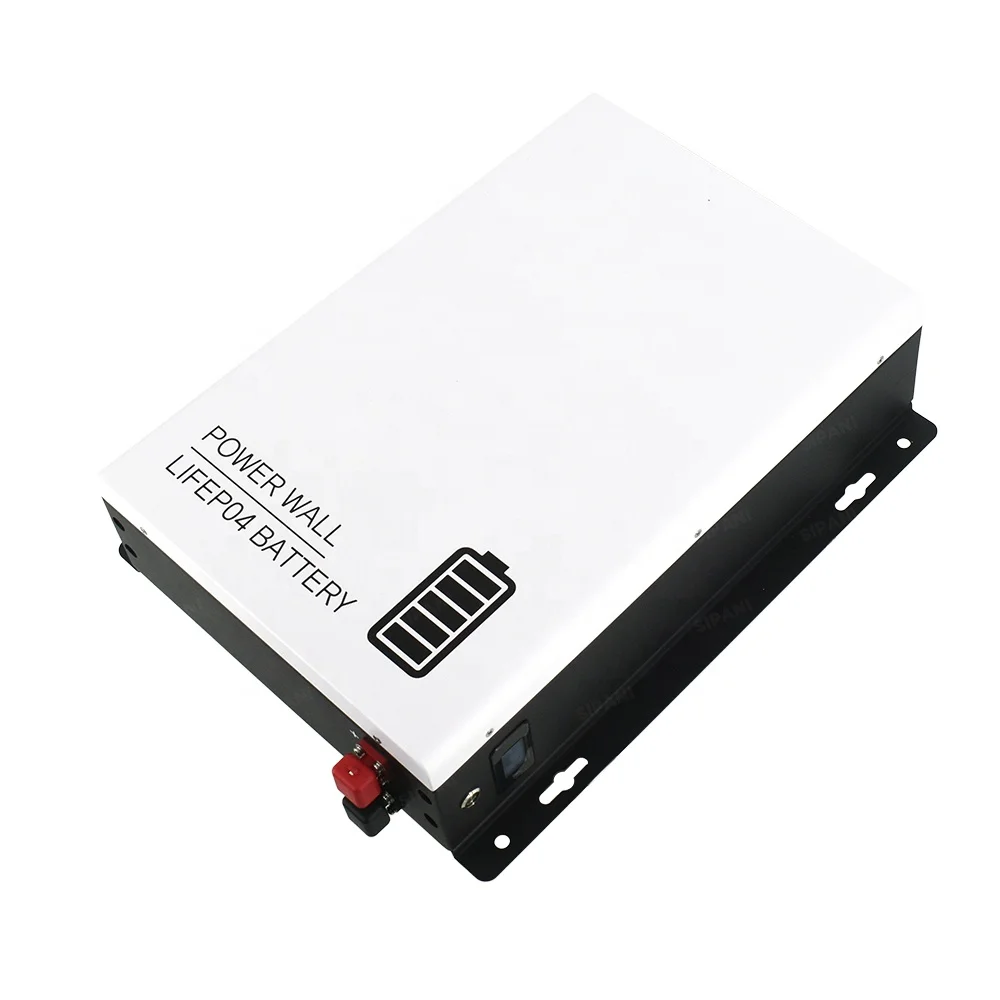

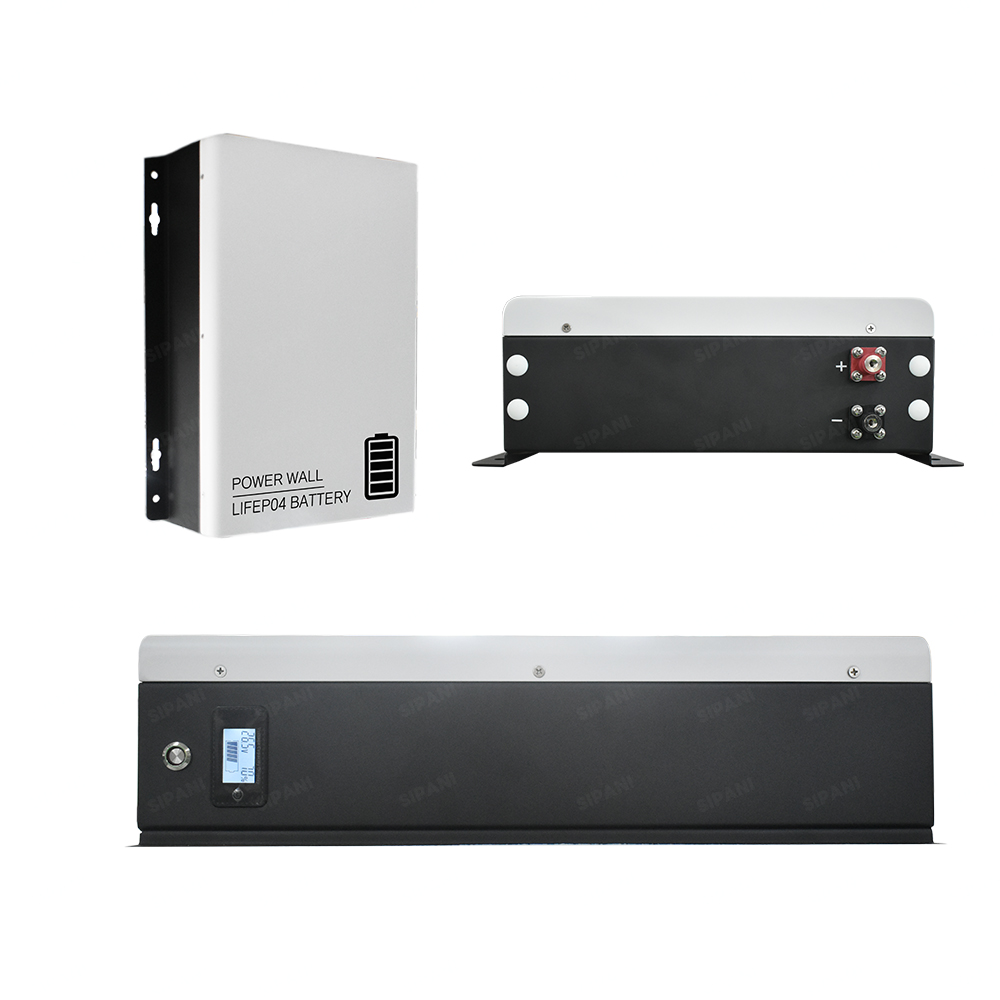

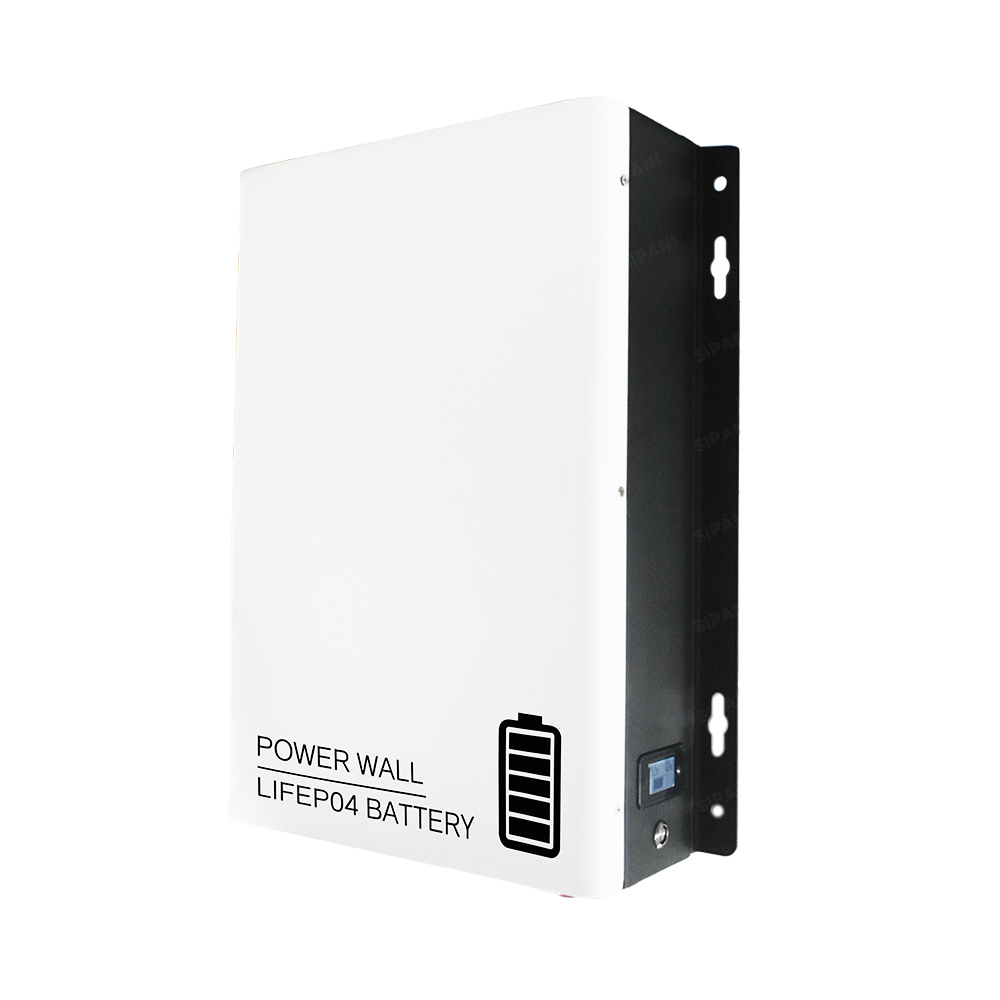

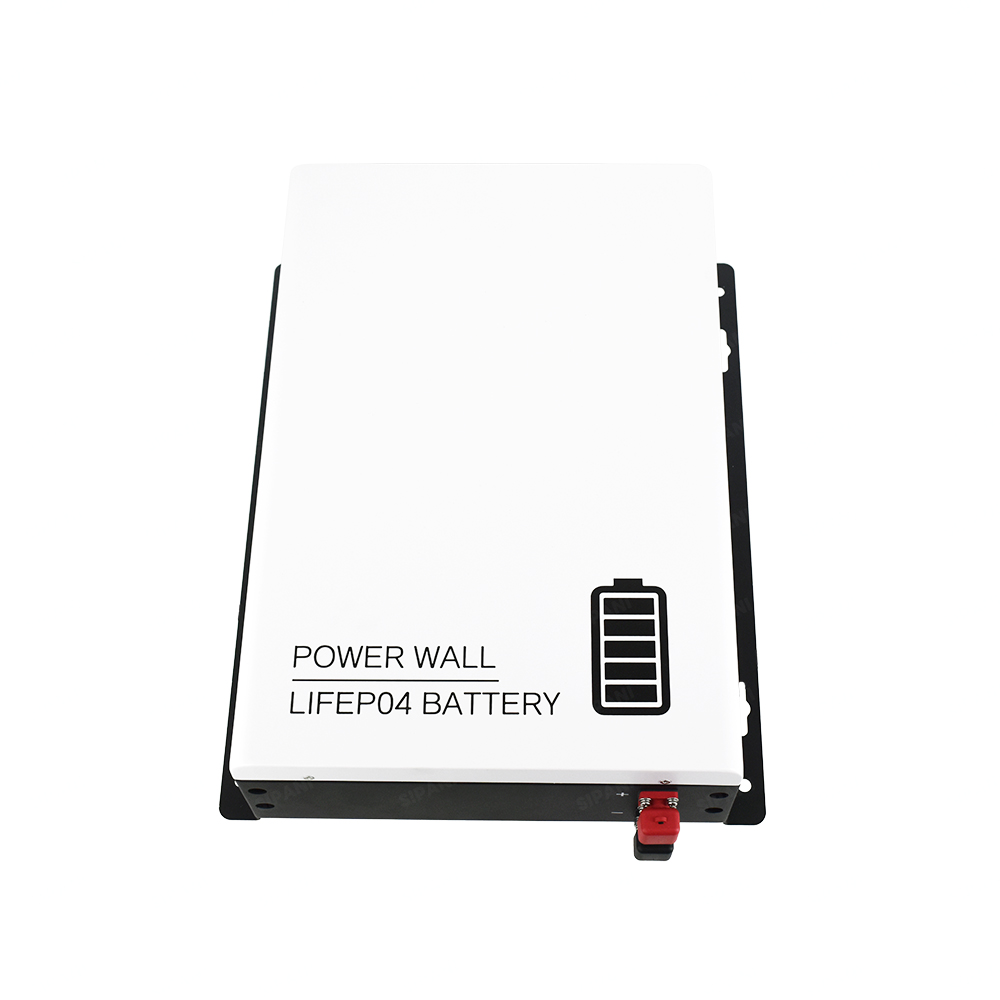

Wall Mounted Lifepo4 battery
Model	Nominal Voltage	Nominal Capacity	Energy	Size
Model	Nominal Voltage	Nominal Capacity	Energy	(Customized)
CD-25.6V 200AH	25.6V	200AH	5120WH	475505156mm
CD-25.6V 250AH	25.6V	250AH	6400WH	475655156mm
CD-48V 100AH	48V	100AH	4800WH	605405200mm
CD-48V 150AH	48V	150AH	7200WH	610440175mm
CD-48V 200AH	48V	200AH	9600WH	620520256mm
CD-48V 250AH	48V	250AH	12000WH	620670256mm
CD-48V 300AH	48V	300AH	14400WH	780520210mm
CD-51.2V 100AH	51.2V	100AH	5120WH	605405200mm
CD-51.2V 150AH	51.2V	150AH	7680WH	610440175mm
CD-51.2V 200AH	51.2V	200AH	10240WH	620520256mm
CD-51.2V 250AH	51.2V	250AH	12800WH	620670256mm
CD-51.2V 300AH	51.2V	300AH	15360WH	780520210mm

*All styles are being upgraded from time to time. Please refer to customer service for specific details and styles.

3kwh storage battery micro inverter with battery home battery micro inverter

Capacity	12V200Ah	24V100Ah	24V200Ah	48V50Ah	48V100Ah	48V150Ah	48V200Ah
Function	Over-discharge, Overcharge, Shortcircuit Protection & Equalization Function
Nominal Volt	12.8V	25.6V		48V/51.2V
Nominal Capacity	2.56kwh	2.56kwh	5.12kwh	2.4kwh/2.56kwh	4.8kwh/5.12kwh	7.2kwh/7.68kwh	9.6kwh/10.24kwh
Recommend Cutoff volt	10.8V	21.6V		40.5V/43.2V
Recommend Charging volt	14.4V	28.8V		54V/57.6V
Max. Constant Charging Current	50A/100A/150A/200A etc. Customized to your needs
Max. Discharging Current	50A/100A/150A/200A etc. Customized to your needs
Working Temperature	-10℃~55℃ (Recommend10℃~40℃)
Storage Temperature	-20℃~45℃ (Recommend10℃~35℃)
Allowable Humidity range	0~85% RH
Cycle Life	6000 Cycles(@50%DOD)
Communication	RS485/CAN etc. All can Customized to your needs
Net Weight
Dimension
