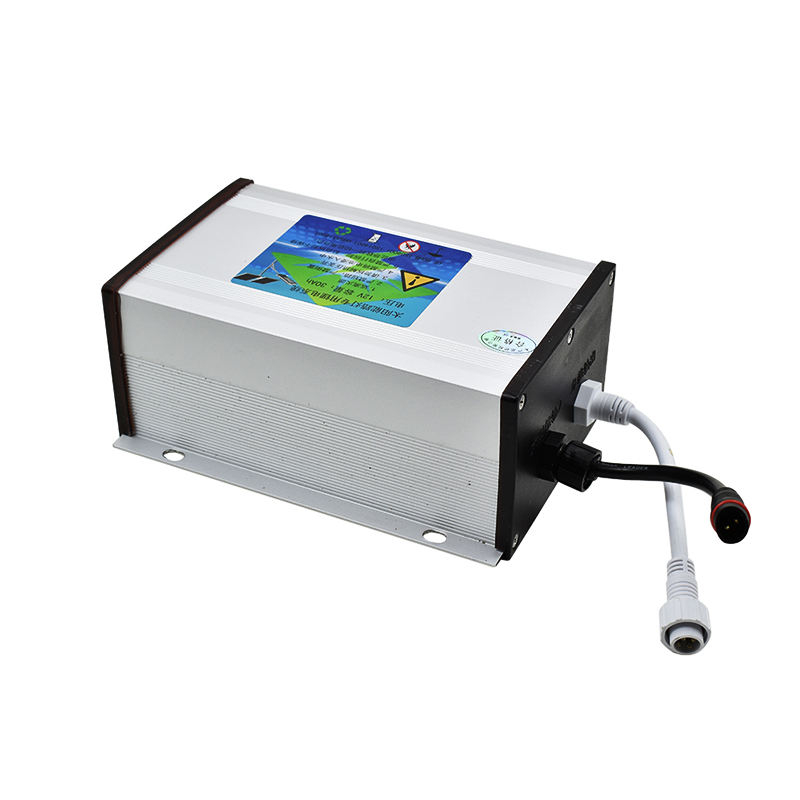

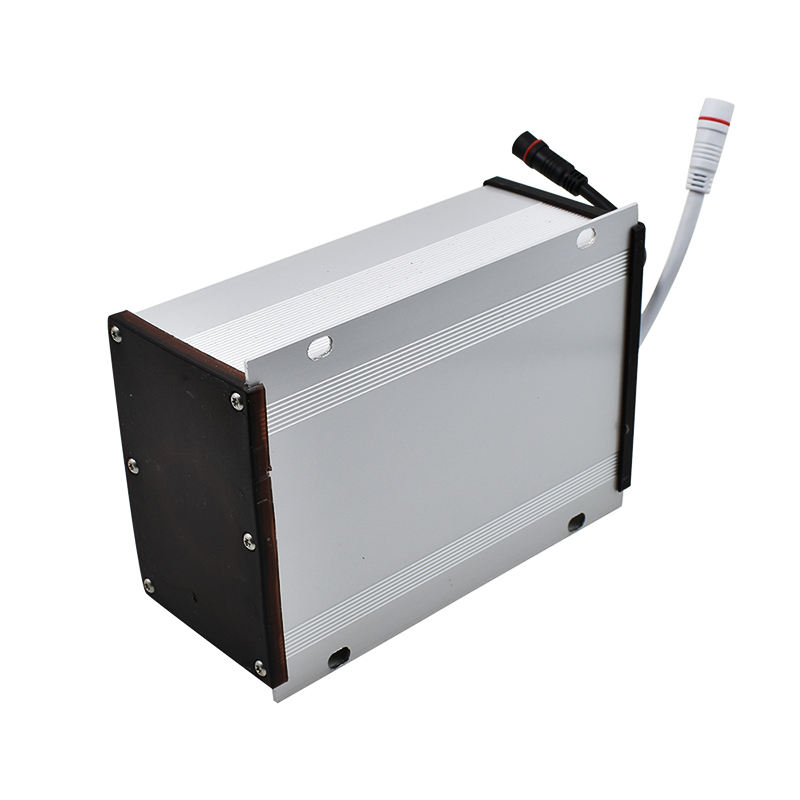

24V 10ah 20ah 30ah 40ah 50ah Solar Energy Storage Battery 18650 Lithium Ion Battery Packs Lithium Street Light Storage Battery


Parameter of 24V Split-type solar street light battery pack(NCM battery)
Battery pack Battery specification 22.2V10AH 22.2V20AH 22.2V30AH 22.2V40AH 22.2V50AH
Cell type 18650 NCM lithium-ion battery cell
Cell capacity 2500mAh
Internal resistance ≤60mΩ
Norminal voltage 22.2V
Norminal capacity 10AH 20AH 30AH 40AH 50AH
Cell layout 6S4P 6S8P 6S12P 6S16P 6S20P
BMS current 15A
Cycle life 800~1000 cycles
Depth of discharge ≥97%
Charge cut-off votltage 25.2V
Discharge cut-off votltage 16.8V
Solar input Advised PV input power 20~40W 40~60W 60~80W 80~100W 100~130W
PV input voltage 36V
Controller Charge method PWM
Discharge method Flat/rise voltage, continuous current
Charge current 15A(MAX)
Discharge current 3.3A(MAX)
load(LED-1W) 24V:10~18 series
Output voltage 24V:30~55V
Dimming value 10%~90%
Working mode Programmable, works 8 hrs per night, 3hrs*80%+3hrs*40%+2hrs*20%(load power)
Load Advised load power 10W 20W 30W 40W 60W
Voltage platform 24V
Advised pole height 3m 4m 6m 8m 10m
Continuous working days 3 days
Other info Working temperature -20℃~+60℃
Storage  temperature 0℃~+45℃
Warranty 2 years
IP level IP65
Weight(Approx) 2kg 3.2kg 4.5kg 5.8kg 7kg
Shell size(plastic) 272*204*80mm 360*232*76mm 380*231*76mm
Shell size(aluminum) 220*160*95mm 300*160*95mm 500*160*95mm 600*160*95mm 700*160*95mm
Input terminal 2pin, 2*1.5mm2, 15cm long, male connector
Output terminal 4pin, 4*0.75mm2, 15cm long, male connector
Accessory PV cable 2pin, 2*1.5mm2, 50cm long, female connector
Load cable 4pin, 4*0.75mm2, 250cm long, male connector

Solar Battery solar battery street light solar street light battery price solar street light battery replacement solar street light lithium battery solar street light battery solar street light battery box solar street light battery capacity Lithium Ion Solar Battery

Solar Battery
Packaging & Shipping

solar battery street light


1.What products do you make?
We provide lithium ion battery for street light, customized lithium battery pack for the most electrics appliances, solar storage battery, electric bicycle battery, and portable power station.

2.Do you provide OEM service?
YES. The required quantity is 200 pcs and above.
3.How long does it take for sampling?
It takes 2-3 days for small battery pack(with capacity below 50AH), and 4~7days for big battery pack(with capacity above 50AH).
4.How long is your lead time?
The lead time is 5~7 days for orders with quantity below 50 pcs, 8~15 days for 50-300 pcs, and 10~20 days for 500 pcs and above.
5.How do you ship the goods?
We generally ship the sample via DHL, UPS, EMS, Fedex, TNT, and normal orders by sea or by air, depends on the quantity of the order. If you need us to arrange shipping for you, we will approach the best method to lower your cost.
6.How do you guarantee the quality?
Our production is proceeding with the guideline of ISO9001 quality management system and we have a strict QC procedure for picking out unqualified products, which is battery capacity classifying, aging, sampling inspection, general testing, discharge testing and appearance checking, with all the procedure gone over, we can control the faulty rate below 0.003%.
7.How long is your warranty?
3 years for solar street light battery, battery pack and solar storage battery, 1 year for portable power station. Besides, all of our products have been insured by CPIC, so please rest assured of the safety performance.
8.For solar street light battery, what should I know about rainy or cloudy days?
The battery for solar street light is hardly being charged during rainy or cloudy days, so it should be customized to be capable for working in the worst weather condition locally, so please let us know how long are the continuous rainy or cloudy days that your could estimate.
